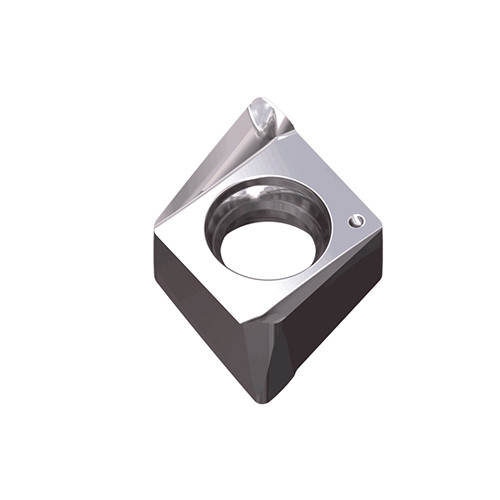

Taegutec 4NHT 060308R-AL K10

Description

Double-sided ground & polished inserts with high positive 4 helical cutting edges & wiper for 90° shoulders of aluminum & non-ferrous materials

Weight	0.0027 kg
barcode

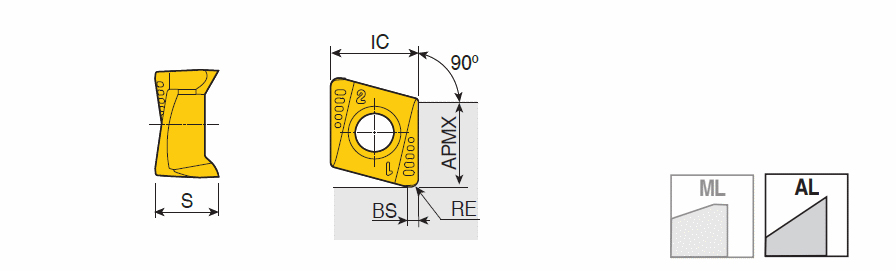

Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Corner Radius (RE): 0.8 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 5 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Inscribed Circle Diameter (IC): 6.6 mm Measurement Type: Metric Insert Thickness (S): 4.9 mm Body Material: Carbide Coating: Uncoated Unit: M
