Taegutec 4NHT 090404R-ML TT9080

Product Code: 6169714

$33.88$30.80 Ex. GST

Product Code: 6169714 SKU 6169714 Categories , ,

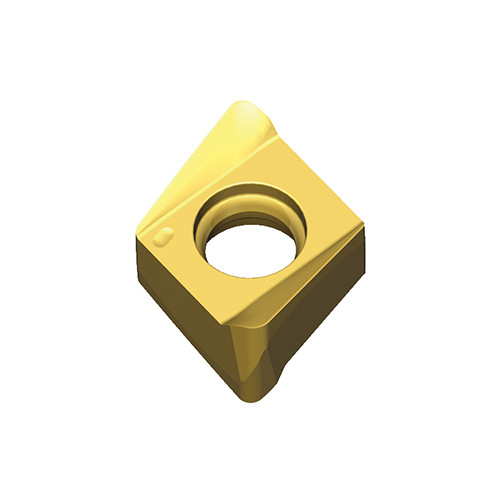

Taegutec 4NHT 090404R-ML TT9080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double-sided ground inserts with high positive four helical cutting edges & wiper flat for excellent surface finish, 90° shoulders, soft cutting and minimized built-up-edges of stainless steel & super alloys

Additional information

Weight 0.0044 kg
barcode
Additional Information

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080
Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth
Corner Radius (RE): 0.4 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 7 mm
Minimum Feed per Tooth (fz(min)): 0.04 mm/tooth
Inscribed Circle Diameter (IC): 8.6 mm
Measurement Type: Metric
Insert Thickness (S): 6.3 mm
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M

Brand

Taegutec
