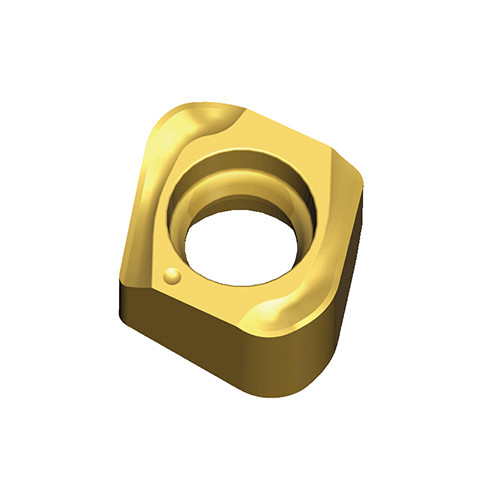

Taegutec 4NKT 040212R-HF TT9080

Product Code: 6312389

$29.07$26.43 Ex. GST

Product Code: 6312389 SKU 6312389 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec 4NKT 040212R-HF TT9080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided inserts with four high positive helical cutting edges for High feed milling in max. depth of cut ap 0.5 mm

Additional information

Weight	0.0020 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.6 mm/tooth Corner Radius (RE): 1.2 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Inscribed Circle Diameter (IC): 4 mm Measurement Type: Metric Insert Thickness (S): 2.65 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M

Brand

Taegutec
