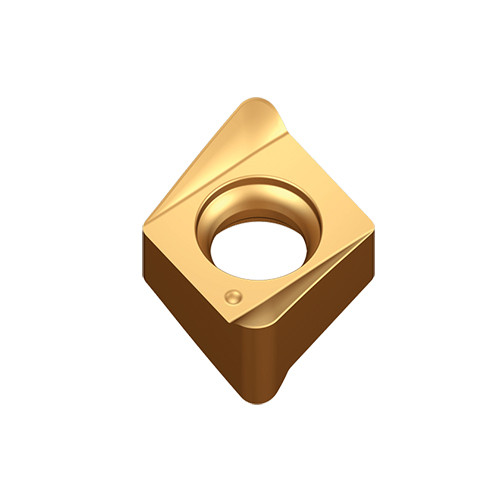

Taegutec 4NKT 060320R-M TT8080

Description

Double-sided inserts with four high positive helical cutting edges & high ramping capacity for 90° shoulders of general machining

Weight	0.0024 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Coating: TiAlN+TiN Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Grade: TT8080 Cutting Edge Length (L): 5.8 mm Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Corner Radius (RE): 2 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 4.5 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Insert Width (W1): 6.6 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 6.6 mm Body Material: Carbide Insert Thickness (S): 4.17 mm Unit: M
