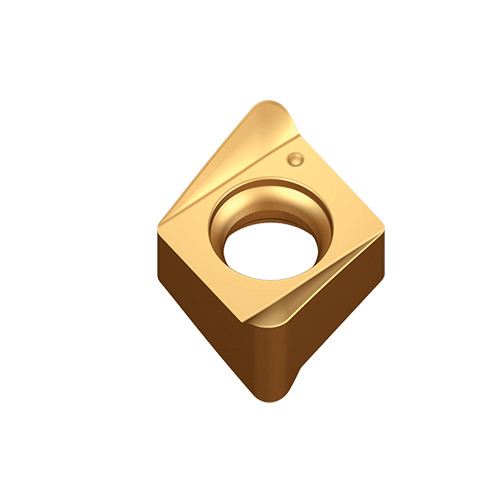

Taegutec 4NKT 090408R-ML TT8080

Product Code: 6230176

$27.79$25.26 Ex. GST

Product Code: 6230176 SKU 6230176 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double-sided inserts with four high positive helical cutting edges & high ramping capacity for 90° shoulders of stainless steel and light cutting

Weight	0.0044 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 7 mm Measurement Type: Metric Insert Thickness (S): 6.2 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M Grade: TT8080
