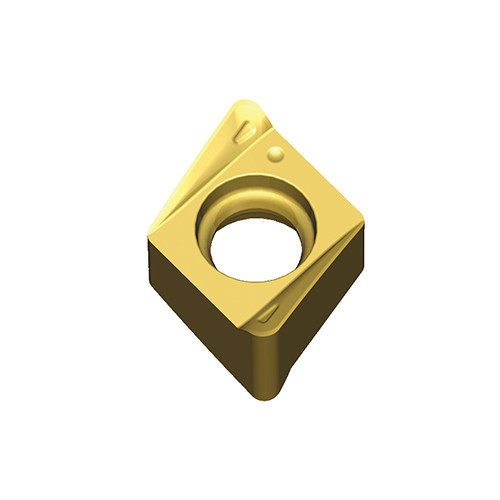

Taegutec 4NKT 090416R-M TT9080

Description

Double-sided inserts with unique four high positive helical cutting edges & high ramping capacity for 90° shoulders of general machining

Weight	0.0043 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Corner Radius (RE): 1.6 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 7 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Inscribed Circle Diameter (IC): 8.6 mm Measurement Type: Metric Insert Thickness (S): 5.7 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
