Taegutec 4NKT 090432R-HF TT9080

Description

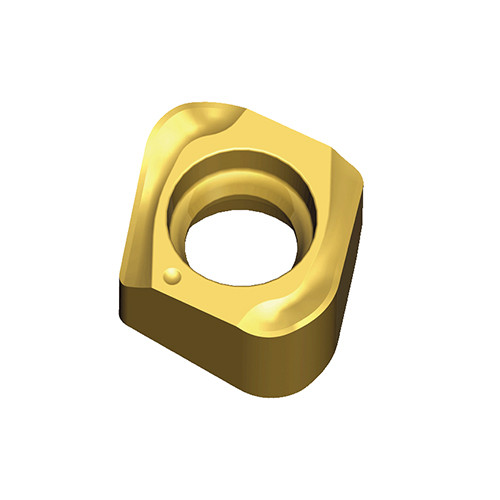

Double-sided inserts with four high positive helical cutting edges for High feed milling in max. depth of cut ap 1.5 mm

Weight	0.0039 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1 mm/tooth Corner Radius (RE): 3.2 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.2 mm/tooth Inscribed Circle Diameter (IC): 8.6 mm Measurement Type: Metric Insert Thickness (S): 4.76 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
