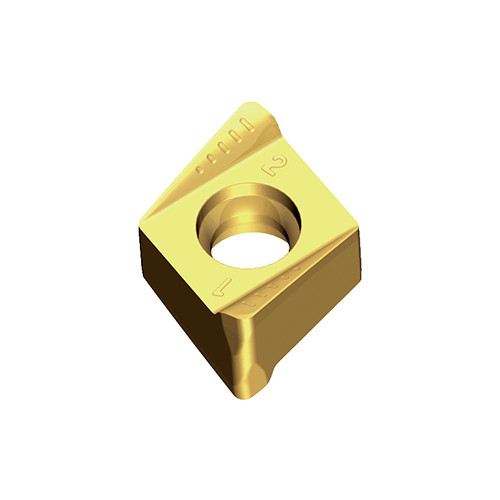

Taegutec 4NKT 110608 PNR-M TT8525B

Description

Double-sided inserts with four high positive helical cutting edges & wiper for 90° shoulders & better surface finish of general machining

Weight	0.0088 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Maximum Feed per Tooth (fz(max)): 0.18 mm/tooth Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Depth of Cut Maximum (APMX): 10 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 10.7 mm Measurement Type: Metric Insert Thickness (S): 8.1 mm Body Material: Carbide Coating: MTCN-Al2O3-TiN Unit: M Grade: TT8525B
