Taegutec 4NKT 110616R-M TT9080

Description

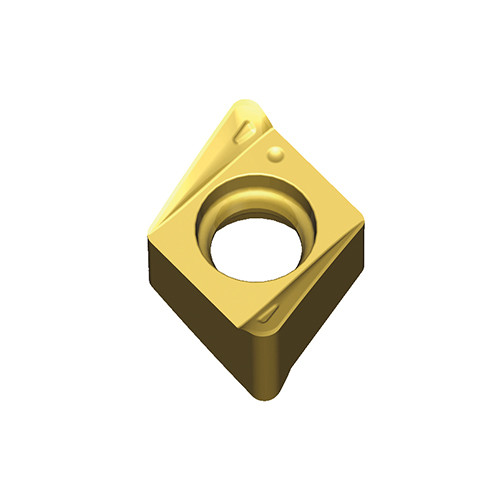

Double-sided inserts with four high positive helical cutting edges & high ramping capacity for 90° shoulders of general machining

Weight	0.0085 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.18 mm/tooth Corner Radius (RE): 1.6 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 9.5 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Inscribed Circle Diameter (IC): 10.7 mm Measurement Type: Metric Insert Thickness (S): 8.1 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
