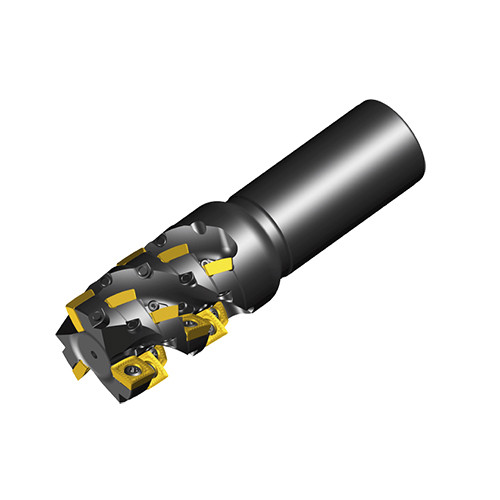

Taegutec 4S-TEF-D50-77-W40-11V-4F

Product Code: 6323403

$3,660.69$3,327.90 Ex. GST

Product Code: 6323403 SKU 6323403 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec 4S-TEF-D50-77-W40-11V-4F - Image 2

Taegutec 4S-TEF-D50-77-W40-11V-4F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute end mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

Additional information

Weight	1.6450 kg
Dimensions
barcode

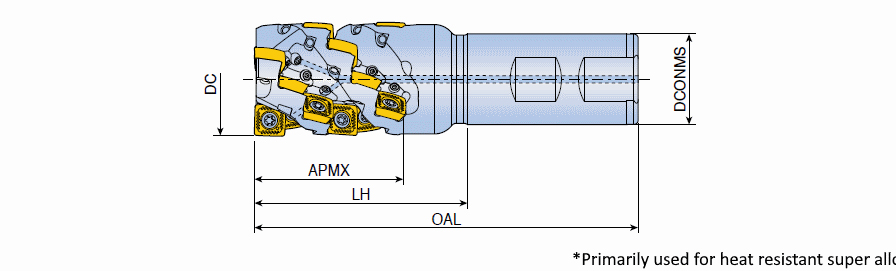

Additional Information	Cutting Diameter (DC/DCX): 50 mm Master Insert Identification (MIID): SVKT 114508-ML Cutting Diameter (DC): 50 mm Body Material: Steel Cutting Item Count (CICT): 36 Application:, Shouldering, Slotting, Trochoidal Milling, Depth of Cut Maximum (APMX): 77.9 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Unit: M Overall Length (OAL): 77.9 mm
