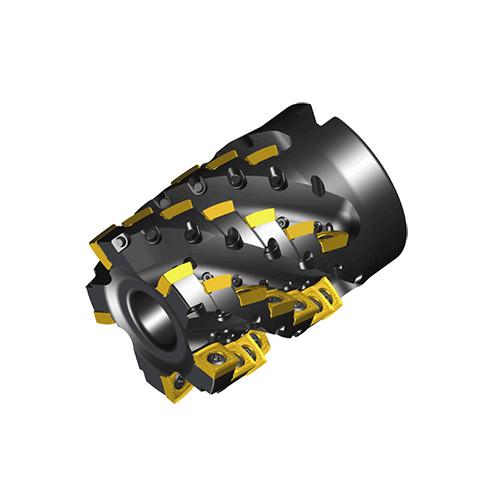

Taegutec 4S-TES-D40-27-16R-11V-3F

Product Code: 6309081

$1,657.15$1,506.50 Ex. GST

Product Code: 6309081 SKU 6309081 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec 4S-TES-D40-27-16R-11V-3F - Image 2

Taegutec 4S-TES-D40-27-16R-11V-3F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute shell mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

Additional information

Weight	0.4450 kg
Dimensions
barcode

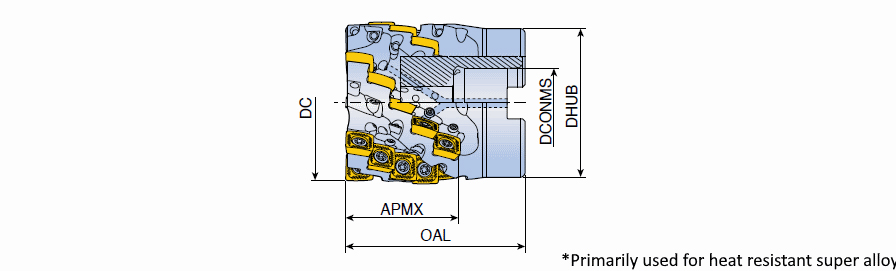

Additional Information	Cutting Diameter (DC/DCX): 40 mm Hub Diameter (DHUB): 38 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): SVKT 114508-ML Cutting Item Count (CICT): 9 Body Material: Steel Depth of Cut Maximum (APMX): 27.4 mm Application:, Shouldering, Slotting, Trochoidal Milling, Connection Diameter Machine Side (DCONMS): 16 mm Measurement Type: Metric Overall Length (OAL): 27.4 mm Unit: M
