Taegutec 4S-TES-D50-43-22R-11V-4F

Product Code: 6309082

$2,105.66$1,914.24 Ex. GST

Product Code: 6309082 SKU 6309082 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

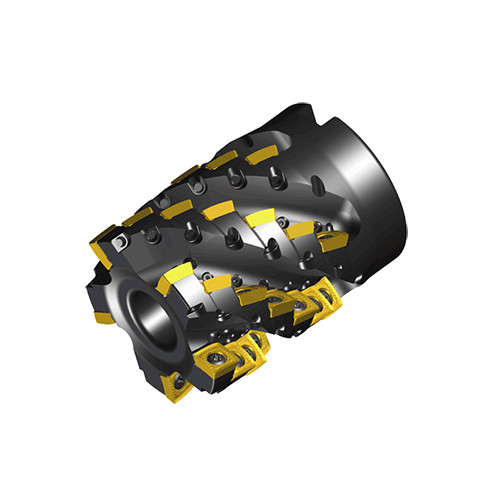

Taegutec 4S-TES-D50-43-22R-11V-4F - Image 2

Taegutec 4S-TES-D50-43-22R-11V-4F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute shell mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

Additional information

Weight	1.0550 kg
Dimensions
barcode

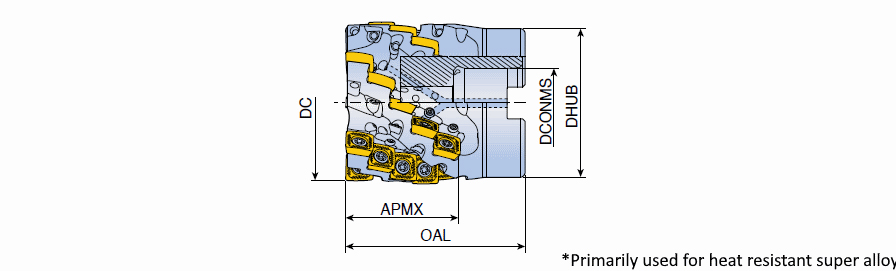

Additional Information	Cutting Diameter (DC/DCX): 50 mm Hub Diameter (DHUB): 45 mm Cutting Diameter (DC): 50 mm Master Insert Identification (MIID): SVKT 114508-ML Cutting Item Count (CICT): 20 Body Material: Steel Depth of Cut Maximum (APMX): 43.9 mm Application:, Shouldering, Slotting, Trochoidal Milling, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Overall Length (OAL): 43.9 mm Unit: M
