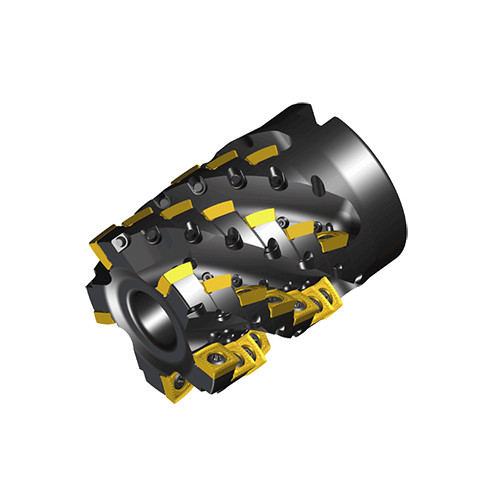

Taegutec 4S-TES-D63-69-27R-11V-5F

Product Code: 6309083

$4,820.92$4,382.65 Ex. GST

Product Code: 6309083 SKU 6309083 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec 4S-TES-D63-69-27R-11V-5F - Image 2

Taegutec 4S-TES-D63-69-27R-11V-5F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

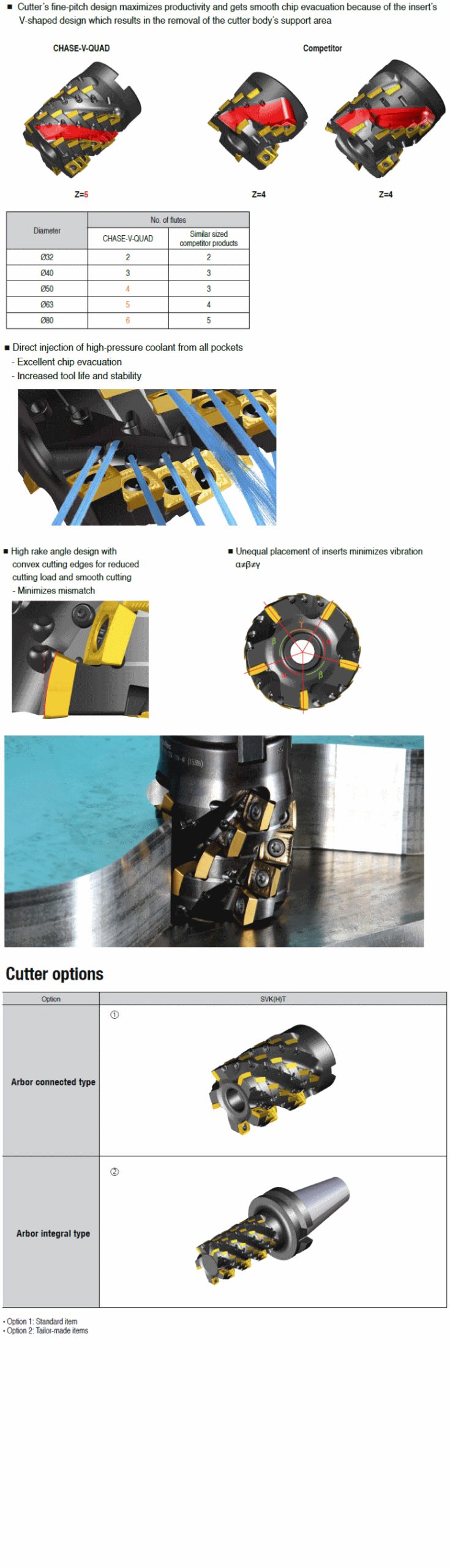

Extended flute shell mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

Additional information

Weight	1.5050 kg
Dimensions
barcode

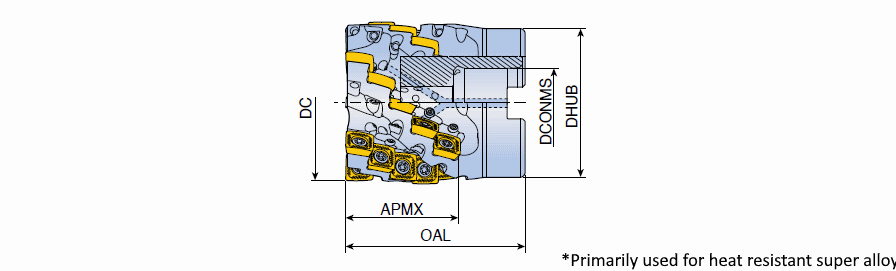

Additional Information	Cutting Diameter (DC/DCX): 63 mm Hub Diameter (DHUB): 58 mm Cutting Diameter (DC): 63 mm Master Insert Identification (MIID): SVKT 114508-ML Cutting Item Count (CICT): 40 Body Material: Steel Depth of Cut Maximum (APMX): 69.4 mm Application:, Shouldering, Slotting, Trochoidal Milling, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 69.4 mm Unit: M
