Taegutec 4T-TE90-211-10-05

Product Code: 6322102

$488.65$444.23 Ex. GST

Product Code: 6322102 SKU 6322102 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

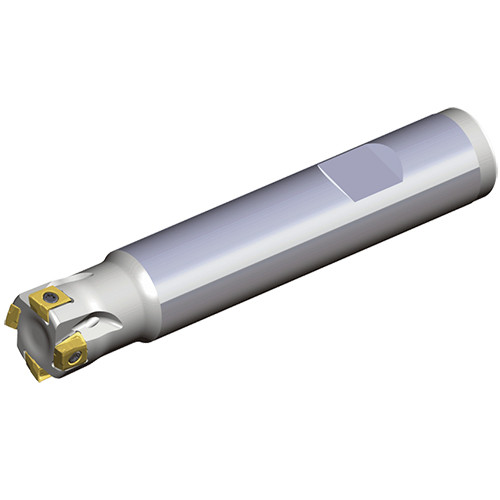

90° End mills with strong tangential type 4 cutting edge LPK(H)U 05 inserts

Weight	0.1150 kg
Dimensions
barcode

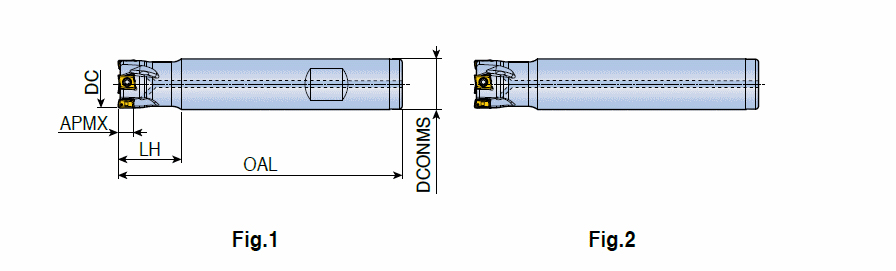

Additional Information	Cutting Diameter (DC/DCX): 11 mm Connection Diameter Machine Side (DCONMS): 10 mm Cutting Diameter (DC): 11 mm Master Insert Identification (MIID): LPHU 050204 PNR-ML Cutting Item Count (CICT): 2 Head Length (LH): 15 mm Depth of Cut Maximum (APMX): 4.6 mm Measurement Type: Metric Overall Length (OAL): 80 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting
