Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec 4T-TE90-220-W20-09
$589.07$535.52 Ex. GST

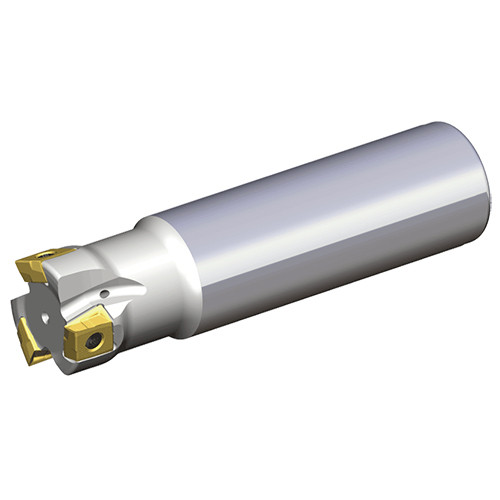

90° End mills with strong tangential type 4 cutting edge LPK(H)U 09 inserts

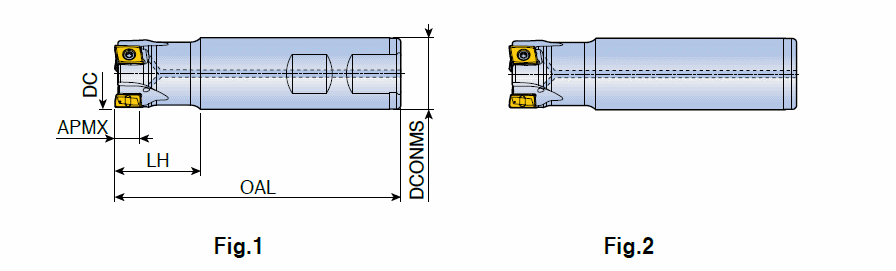

Cutting Diameter (DC/DCX): 20 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 20 mm Master Insert Identification (MIID): LPHU 090404 PNR-M Cutting Item Count (CICT): 2 Head Length (LH): 30 mm Depth of Cut Maximum (APMX): 8.3 mm Measurement Type: Metric Overall Length (OAL): 100 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting
