Taegutec 4T-TE90-325-25-09-L200

Product Code: 6307653

$682.33$620.30 Ex. GST

Product Code: 6307653 SKU 6307653 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

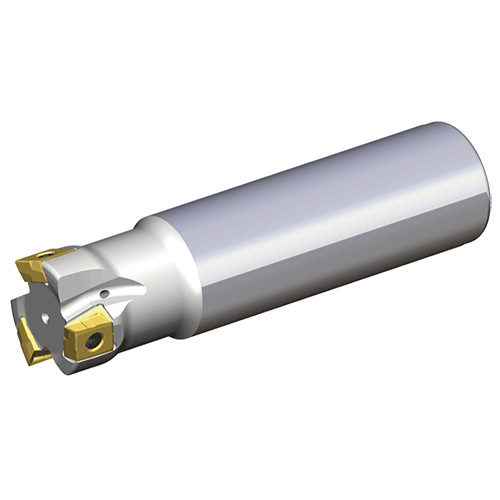

90° End mills with strong tangential type 4 cutting edge LPK(H)U 09 inserts

Weight	0.8250 kg
Dimensions
barcode

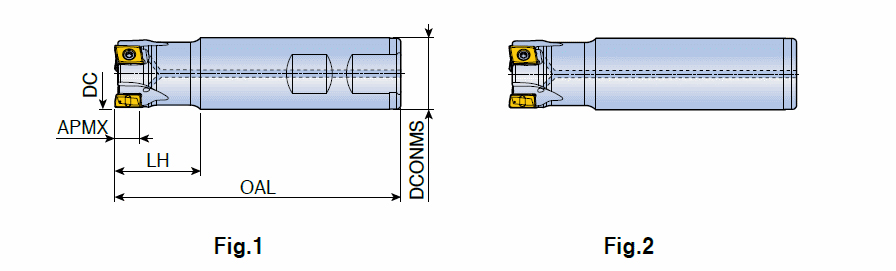

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): LPHU 090404 PNR-M Cutting Item Count (CICT): 3 Head Length (LH): 30 mm Depth of Cut Maximum (APMX): 8.3 mm Measurement Type: Metric Overall Length (OAL): 200 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting
