Taegutec 4T-TE90-420-W20-05

Product Code: 6322105

$655.56$595.96 Ex. GST

Product Code: 6322105 SKU 6322105 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

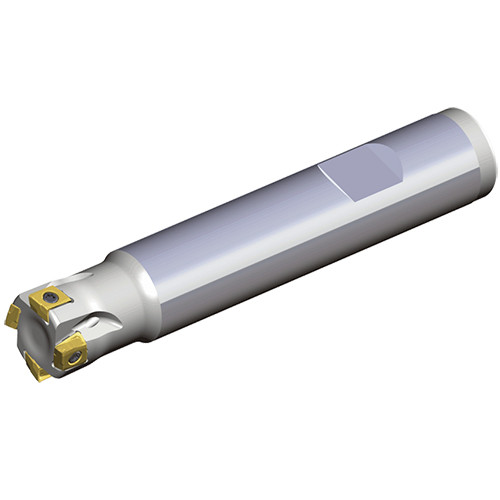

90° End mills with strong tangential type 4 cutting edge LPK(H)U 05 inserts

Weight	0.2850 kg
Dimensions
barcode

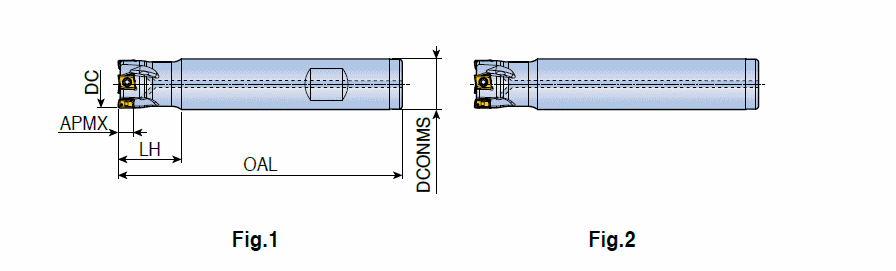

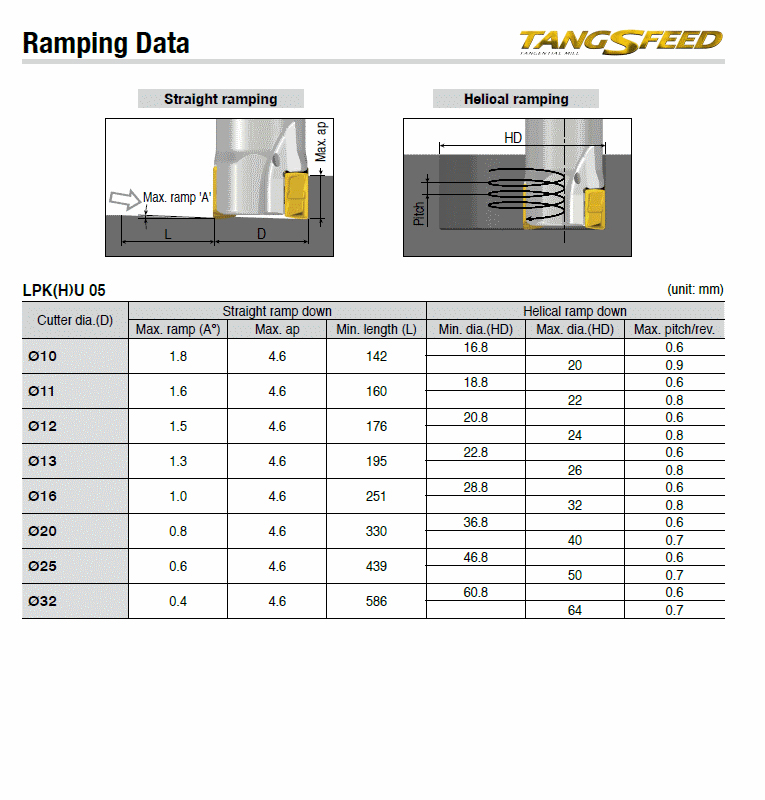

Additional Information	Cutting Diameter (DC/DCX): 20 mm Connection Diameter Machine Side (DCONMS): 20 mm Cutting Diameter (DC): 20 mm Master Insert Identification (MIID): LPHU 050204 PNR-ML Cutting Item Count (CICT): 4 Head Length (LH): 25 mm Depth of Cut Maximum (APMX): 4.6 mm Measurement Type: Metric Overall Length (OAL): 100 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting
