Taegutec 4T-TEF D25-27-W25-05

Product Code: 6322117

$2,121.68$1,928.80 Ex. GST

Product Code: 6322117 SKU 6322117 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

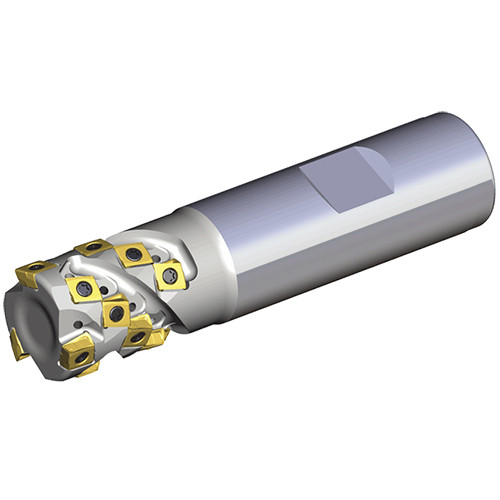

Extended flute end mills with strong tangential type 4 cutting edge LPK(H)U inserts

Additional information

Weight 0.3500 kg
Dimensions
barcode
Additional Information

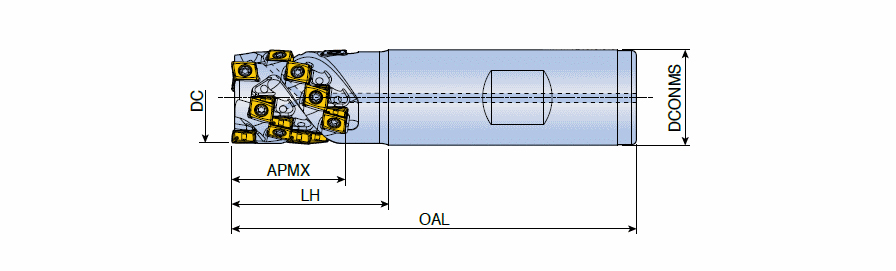

Cutting Diameter (DC/DCX): 25 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Cutting Diameter (DC): 25 mm
Master Insert Identification (MIID): LPHU 050204 PNR-ML
Cutting Item Count (CICT): 4
Head Length (LH): 35 mm
Depth of Cut Maximum (APMX): 27 mm
Measurement Type: Metric
Overall Length (OAL): 95 mm
Body Material: Steel
Shank Type: Weldon
Unit: M
Application:, Shouldering, Slotting, Trochoidal Milling

Brand

Taegutec
