Taegutec 4T-TEF D32-36-W32-09

Product Code: 6307633

$1,661.66$1,510.60 Ex. GST

Product Code: 6307633 SKU 6307633 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

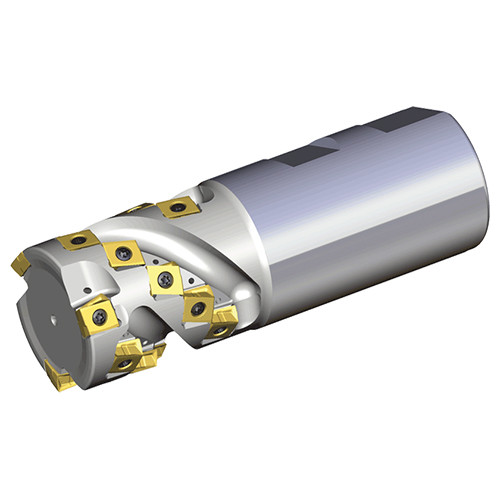

Extended flute end mills with strong tangential type 4 cutting edge LPK(H)U inserts

Additional information

Weight 0.6200 kg
Dimensions
barcode
Additional Information

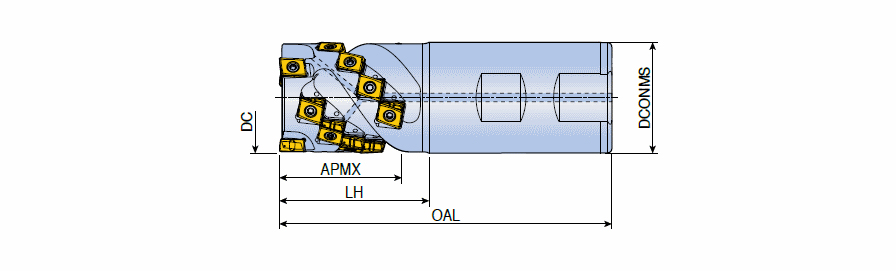

Cutting Diameter (DC/DCX): 32 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 32 mm
Master Insert Identification (MIID): LPHU 090404 PNR-M
Cutting Item Count (CICT): 3
Head Length (LH): 44 mm
Depth of Cut Maximum (APMX): 36 mm
Measurement Type: Metric
Overall Length (OAL): 105 mm
Body Material: Steel
Shank Type: Weldon
Unit: M
Application:, Shouldering, Slotting, Trochoidal Milling

Brand

Taegutec
