Taegutec 4T-TES D100-56-40R-14

Product Code: 6307643

$3,077.73$2,797.94 Ex. GST

Product Code: 6307643 SKU 6307643 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

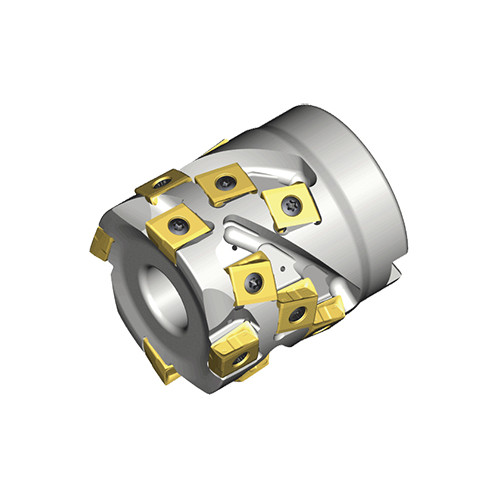

Extended flute shell mills with strong tangential type 4 cutting edge LPKU 14 inserts

Weight	4.3750 kg
Dimensions
barcode

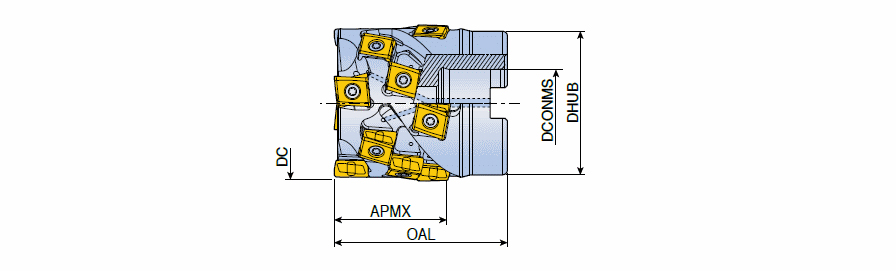

Additional Information	Application:, Shouldering, Slotting, Trochoidal Milling, Overall Length (OAL): 90 mm Cutting Item Count (CICT): 6 Master Insert Identification (MIID): LPHU 140708 PNR-M Depth of Cut Maximum (APMX): 56 mm Measurement Type: Metric Cutting Diameter (DC): 100 mm Body Material: Steel Connection Diameter Machine Side (DCONMS): 40 mm Hub Diameter (DHUB): 94 mm Flute Count (NOF): 30 Unit: M
