Taegutec 4T-TES D50-34-22R-14

Product Code: 6307638

$1,005.31$913.92 Ex. GST

Product Code: 6307638 SKU 6307638 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec 4T-TES D50-34-22R-14

Taegutec 4T-TES D50-34-22R-14 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

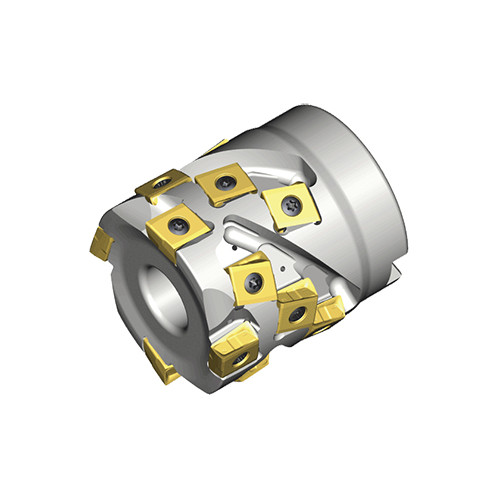

Extended flute shell mills with strong tangential type 4 cutting edge LPKU 14 inserts

Additional information

Weight	0.6150 kg
Dimensions
barcode

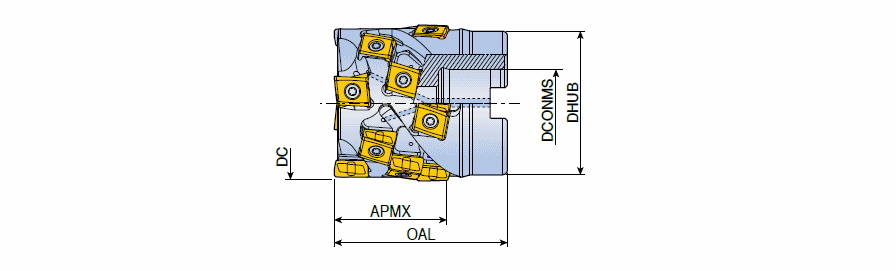

Additional Information	Application:, Shouldering, Slotting, Trochoidal Milling, Overall Length (OAL): 55 mm Cutting Item Count (CICT): 3 Master Insert Identification (MIID): LPHU 140708 PNR-M Depth of Cut Maximum (APMX): 34 mm Measurement Type: Metric Cutting Diameter (DC): 50 mm Body Material: Steel Connection Diameter Machine Side (DCONMS): 22 mm Hub Diameter (DHUB): 45 mm Flute Count (NOF): 9 Unit: M

Brand

Taegutec
