Taegutec 4T-TF90-550-22R-09

Product Code: 6192361

$892.33$811.21 Ex. GST

Product Code: 6192361 SKU 6192361 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

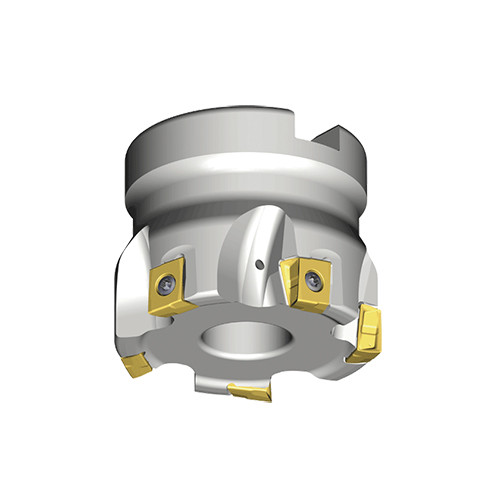

90° Face mills with strong tangential type 4 cutting edge LPK(H)U 09 inserts

Weight	0.9250 kg
Dimensions
barcode

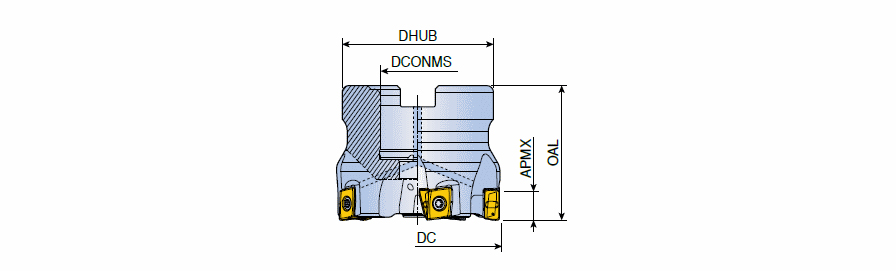

Additional Information	Cutting Diameter (DC/DCX): 50 mm Hub Diameter (DHUB): 45 mm Cutting Diameter (DC): 50 mm Master Insert Identification (MIID): LPHU 090404 PNR-M Cutting Item Count (CICT): 5 Body Material: Steel Depth of Cut Maximum (APMX): 8.3 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Overall Length (OAL): 8.3 mm Unit: M
