Taegutec 4W-TF90-8100-32R-12

Product Code: 6314706

$1,588.55$1,444.14 Ex. GST

Product Code: 6314706 SKU 6314706 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

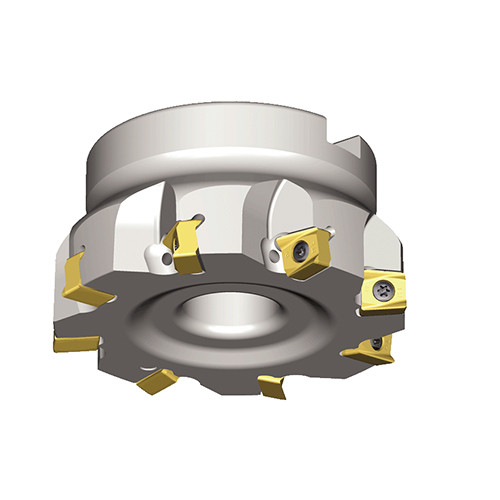

Face mills with periphery ground precise wiper inserts for super finishing of various materials such as steels, cast iron & aluminum alloys

Weight	2.0150 kg
Dimensions
barcode

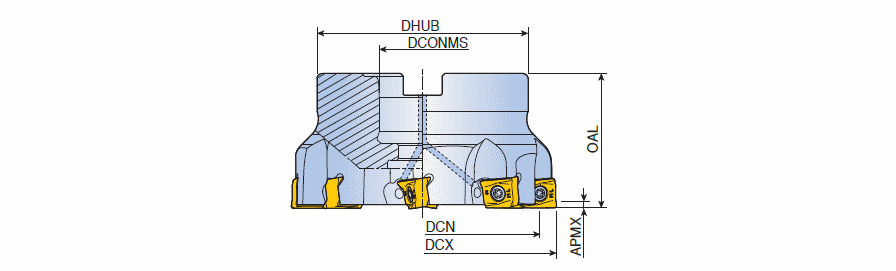

Additional Information	Cutting Diameter (DC/DCX): 100 mm Hub Diameter (DHUB): 66 mm Cutting Diameter Maximum (DCX): 100 mm Master Insert Identification (MIID): 4WHU 1207-ML Cutting Item Count (CICT): 8 Body Material: Steel Depth of Cut Maximum (APMX): 0.5 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 32 mm Measurement Type: Metric Overall Length (OAL): 0.5 mm Unit: M
