Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec 4W-TF90-880-27R-12

Taegutec 4W-TF90-880-27R-12

Product Code: 6319616

$1,322.71$1,202.46 Ex. GST

Product Code: 6319616 SKU 6319616 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

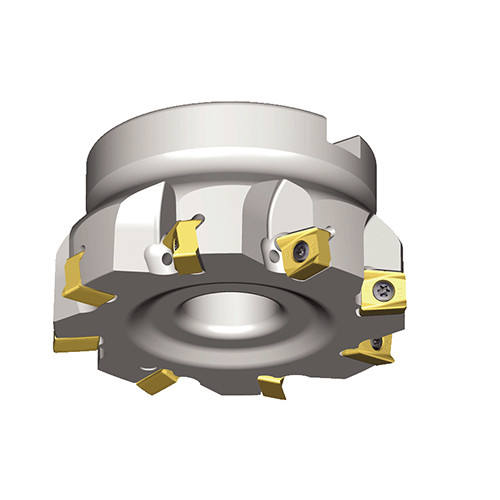

Taegutec 4W-TF90-880-27R-12

Taegutec 4W-TF90-880-27R-12 - Image 2

Taegutec 4W-TF90-880-27R-12 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mills with periphery ground precise wiper inserts for super finishing of various materials such as steels, cast iron & aluminum alloys

Additional information

Weight	1.5500 kg
Dimensions
barcode

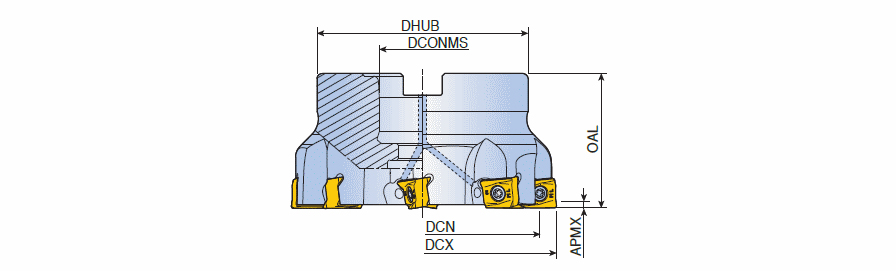

Additional Information	Cutting Diameter (DC/DCX): 80 mm Hub Diameter (DHUB): 58 mm Cutting Diameter Maximum (DCX): 80 mm Master Insert Identification (MIID): 4WHU 1207-ML Cutting Item Count (CICT): 8 Body Material: Steel Depth of Cut Maximum (APMX): 0.5 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 0.5 mm Unit: M

Brand

Taegutec
