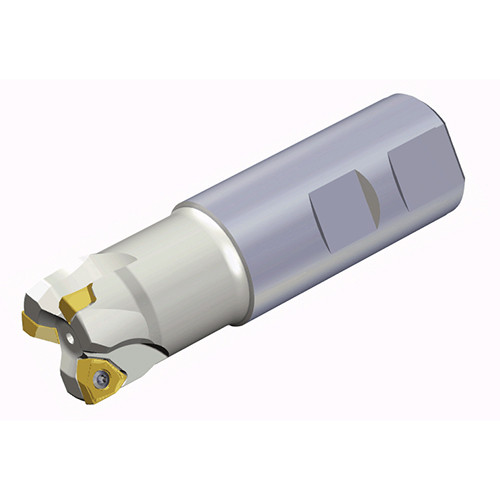

90° End mills with positive six cutting edges of double- sided 6NGU 06/09 inserts for cost effective machining
Additional information
Weight
0.5850 kg
Dimensions
barcode
Additional Information

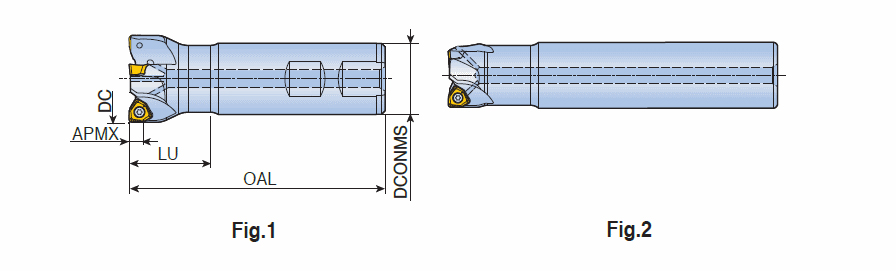

Cutting Diameter (DC/DCX): 25 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Cutting Diameter (DC): 25 mm
Master Insert Identification (MIID): 6NGU 060404R-M
Cutting Item Count (CICT): 2
Head Length (LH): 30 mm
Depth of Cut Maximum (APMX): 6.2 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Shouldering, Slotting
