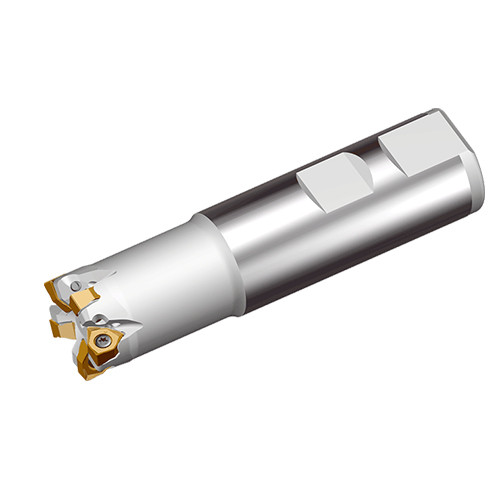

90° End mills with economical positive six cutting edges of double-sided 6NKU 04 inserts for general machining
Additional information
Weight
0.6750 kg
Dimensions
barcode
Additional Information
Cutting Diameter (DC/DCX): 32 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 32 mm
Master Insert Identification (MIID): 6NKU 040304R-M
Cutting Item Count (CICT): 3
Head Length (LH): 43 mm
Depth of Cut Maximum (APMX): 4.1 mm
Measurement Type: Metric
Overall Length (OAL): 110 mm
Body Material: Steel
Shank Type: Weldon
Unit: M
Application:, Facing, Shouldering, Slotting
