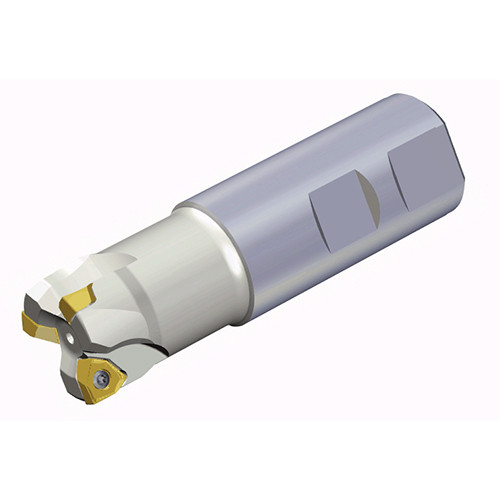

90° End mills with positive six cutting edges of double- sided 6NGU 06/09 inserts for cost effective machining
Additional information
Weight
1.2850 kg
Dimensions
barcode
Additional Information
Cutting Diameter (DC/DCX): 40 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 40 mm
Master Insert Identification (MIID): 6NGU 090508R-M
Cutting Item Count (CICT): 3
Head Length (LH): 40 mm
Depth of Cut Maximum (APMX): 9.2 mm
Measurement Type: Metric
Overall Length (OAL): 200 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Shouldering, Slotting
