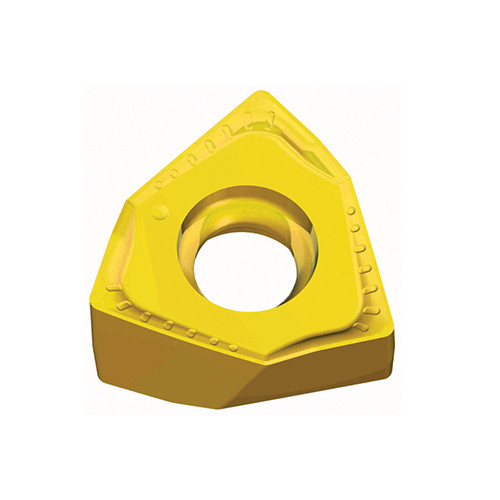

Double-sided ground positive 6 cutting edges inserts for general machining and 90° shoulders
Additional information
Weight
0.0047 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080
Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth
Cutting Edge Length (L): 6.2 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth
Depth of Cut Maximum (APMX): 5 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 9.26 mm
Body Material: Carbide
Insert Thickness (S): 4.76 mm
Unit: M
Coating: AlTiN+TiN
