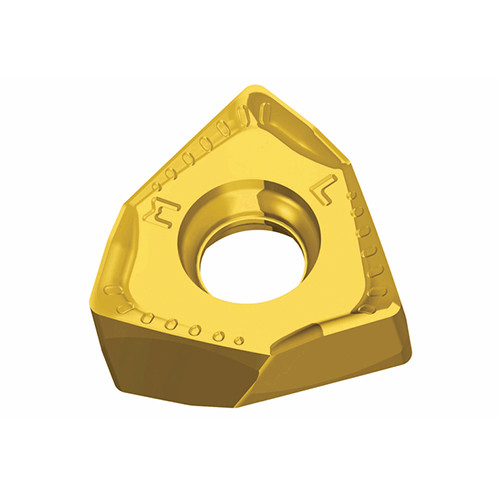

Taegutec 6NGU 060408R-ML TT9080

Product Code: 6102167

$43.31$39.37 Ex. GST

Product Code: 6102167 SKU 6102167 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double-sided ground positive 6 cutting edges inserts for light machining and 90° shoulders

Weight	0.0044 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth Cutting Edge Length (L): 6.2 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 9.26 mm Body Material: Carbide Insert Thickness (S): 4.76 mm Unit: M Coating: TiAlN+TiN
