Taegutec 6NGU 060416R-M TT7080

Product Code: 5614784

$43.31$39.37 Ex. GST

Product Code: 5614784 SKU 5614784 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

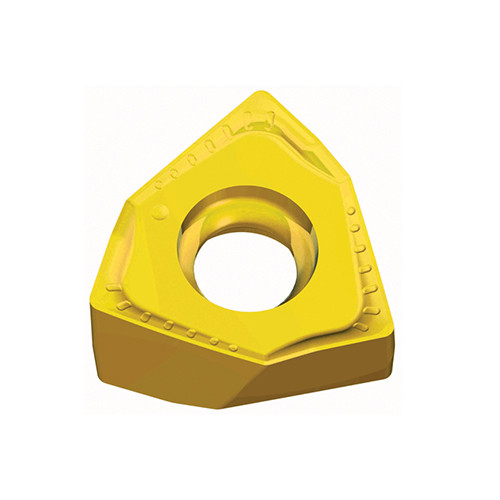

Double-sided ground positive 6 cutting edges inserts for general machining and 90° shoulders

Weight	0.0036 kg
barcode
Additional Information	Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 6.2 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.6 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 9.26 mm Body Material: Carbide Insert Thickness (S): 4.76 mm Unit: M Coating: TiAlN+TiN
