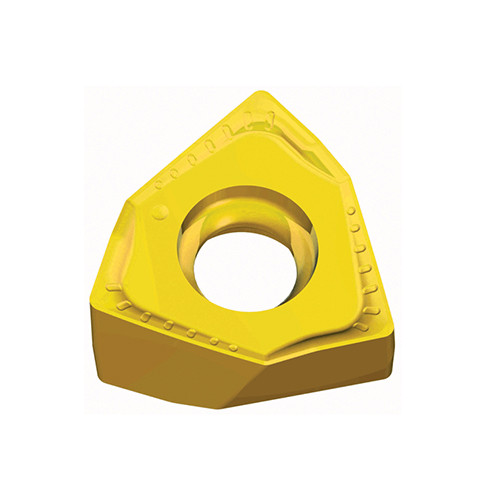

Taegutec 6NGU 090508R-M TT7515

Product Code: 6178715

$52.02$47.29 Ex. GST

Product Code: 6178715 SKU 6178715 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec 6NGU 090508R-M TT7515

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided ground positive 6 cutting edges inserts for general machining and 90° shoulders

Additional information

Weight	0.0087 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT7515 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 9.2 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 7.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.05 mm Body Material: Carbide Insert Thickness (S): 6.7 mm Unit: M Coating: TiCN+Al2O3+TiN

Brand

Taegutec
