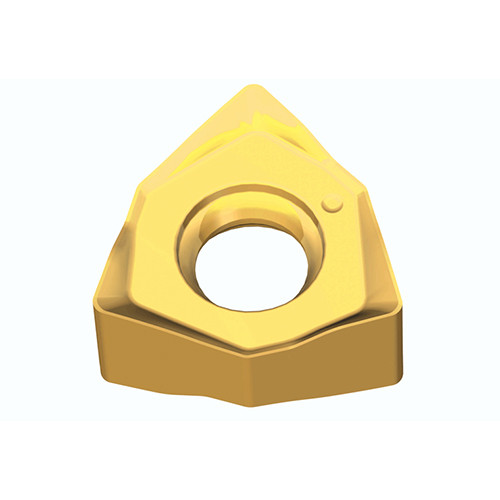

Double-sided economical positive 6 cutting edges inserts for general machining and 90° shoulders
Additional information
Weight
0.0026 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth
Cutting Edge Length (L): 4.1 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth
Depth of Cut Maximum (APMX): 3 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 7 mm
Body Material: Carbide
Insert Thickness (S): 3.9 mm
Unit: M
Coating: AlTiN
