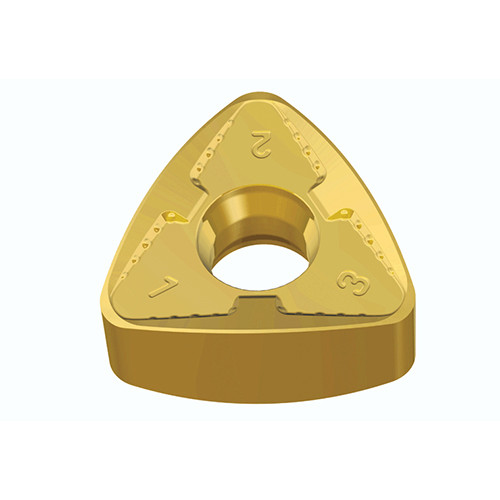

Double-sided inserts with 6 cutting edges for rough ball tools
Additional information
Weight
0.0183 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.8 mm/tooth
Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 5 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Inscribed Circle Diameter (IC): 13 mm
Number of Cutting Edges: 6
Insert Thickness (S): 8 mm
Measurement Type: Metric
Coating: AlTiN+TiN
Body Material: Carbide
Grade: TT6080
Unit: M
