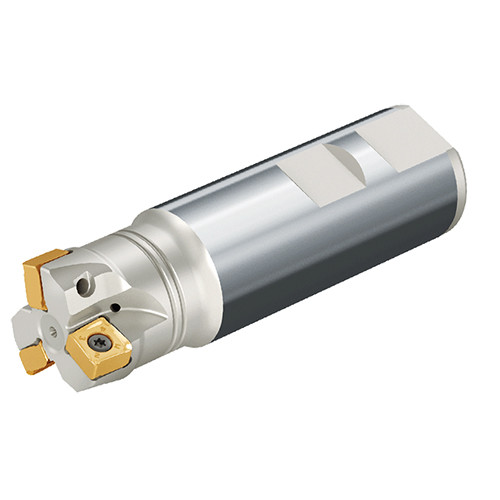

Taegutec 8D-TE90-440-W32-10

Product Code: 6247295

$739.09$671.90 Ex. GST

Product Code: 6247295 SKU 6247295 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

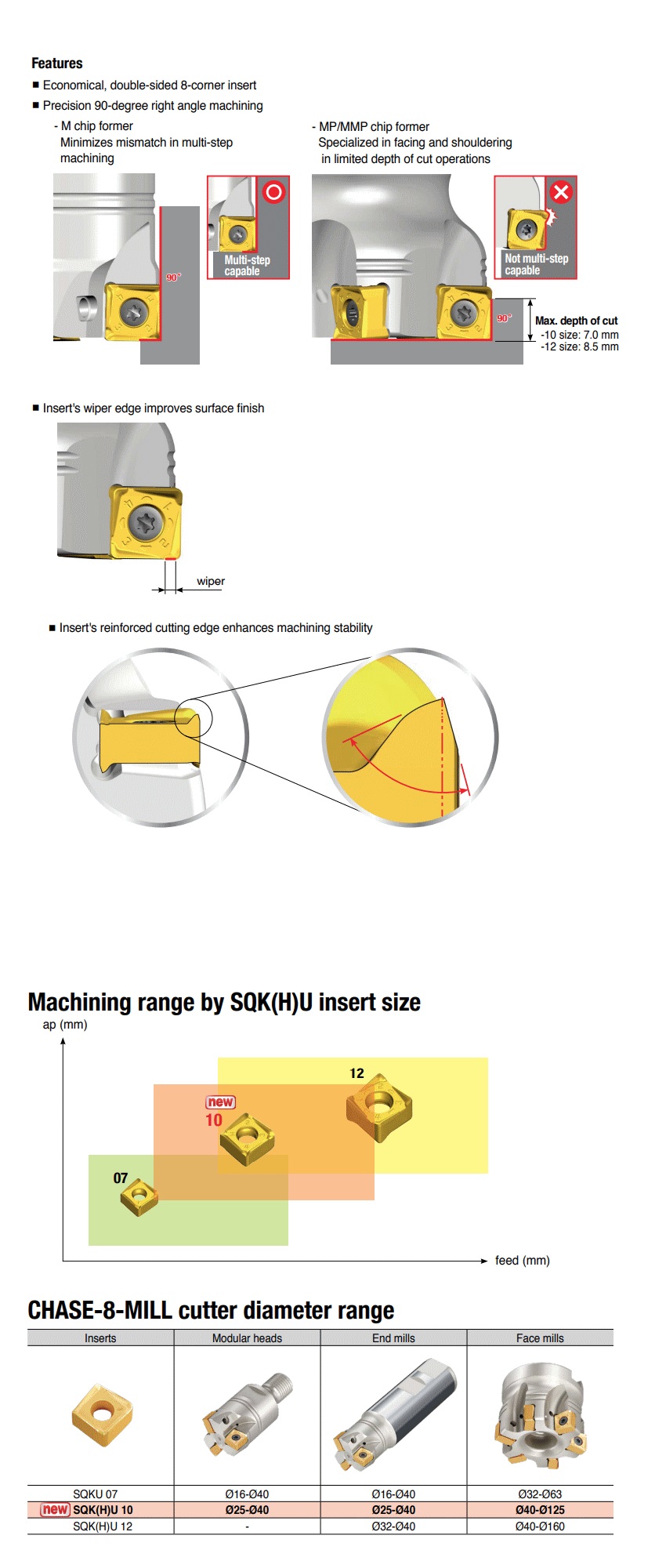

90° End mills with 8 cutting edges of double-sided Square inserts SQK(H)U 10 for general milling

Weight	0.7250 kg
Dimensions
barcode

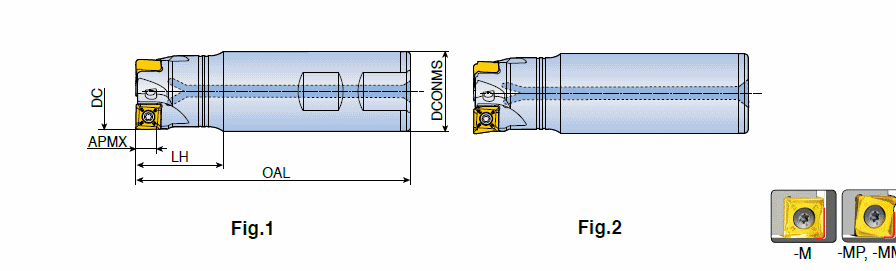

Additional Information	Cutting Diameter (DC/DCX): 40 mm Master Insert Identification (MIID): SQKU 100408 PNR-M Cutting Diameter (DC): 40 mm Body Material: Steel Cutting Item Count (CICT): 4 Application:, Facing, Shouldering, Slotting, Depth of Cut Maximum (APMX): 7 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Unit: M Overall Length (OAL): 7 mm
