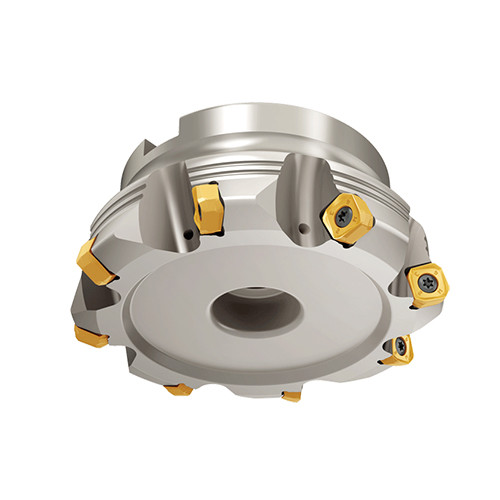

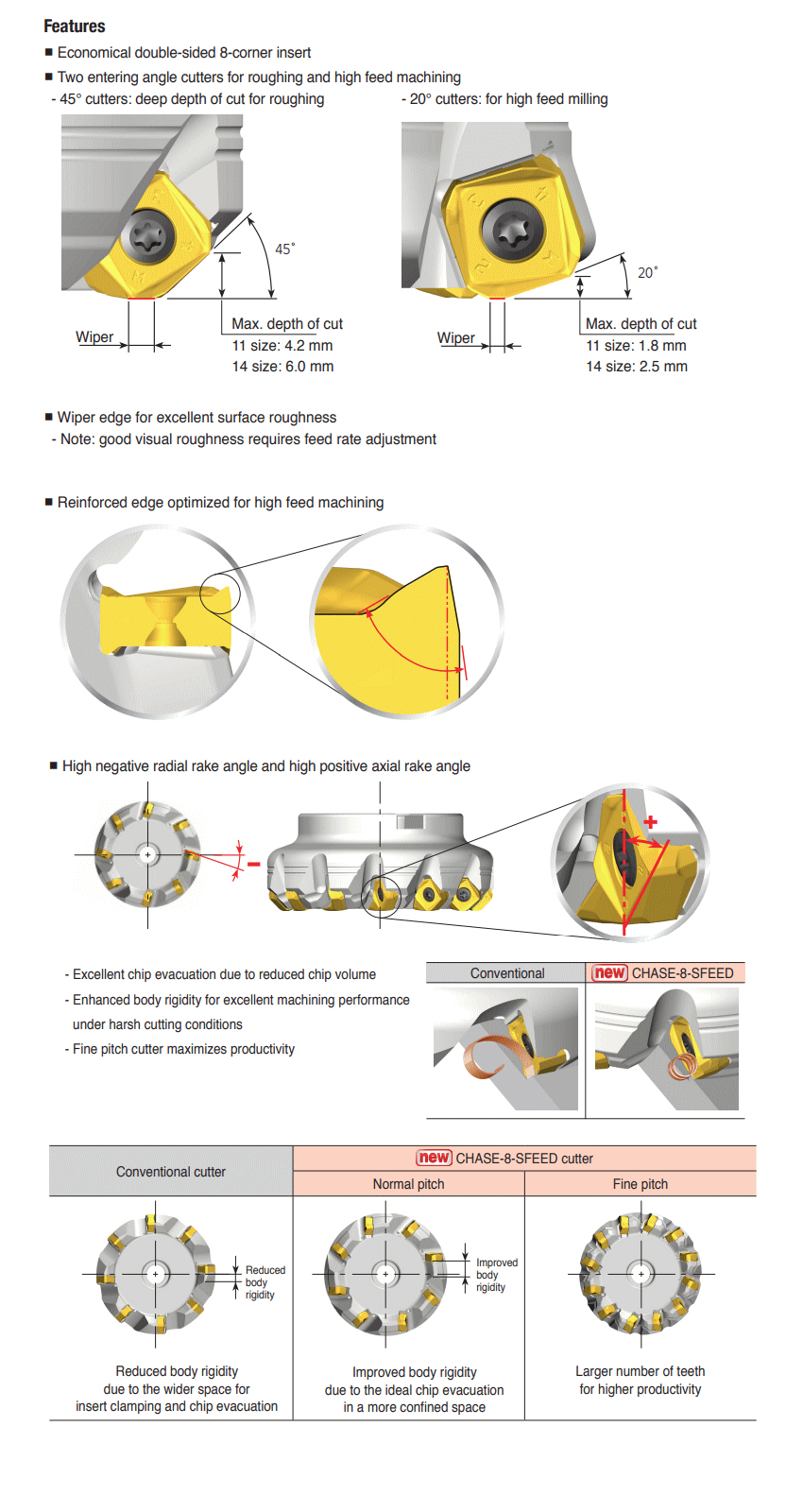

20° Face mills with 8 cutting edges of double-sided Square inserts SQKU 11 for high feed machining
Additional information
Weight
2.7850 kg
Dimensions
barcode
Additional Information

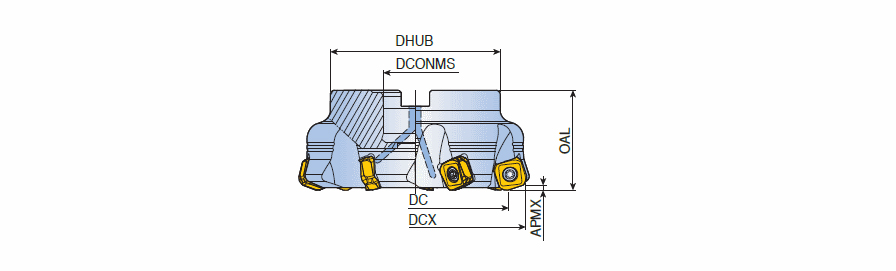

Cutting Diameter (DC/DCX): 113.5 mm
Hub Diameter (DHUB): 85 mm
Cutting Diameter (DC): 100 mm
Master Insert Identification (MIID): SQKU 1105 ANR-M
Cutting Diameter Maximum (DCX): 113.5 mm
Body Material: Steel
Cutting Item Count (CICT): 8
Application:, Facing, High Feed Milling, Depth of Cut Maximum (APMX): 1.8 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Unit: M
Overall Length (OAL): 1.8 mm
