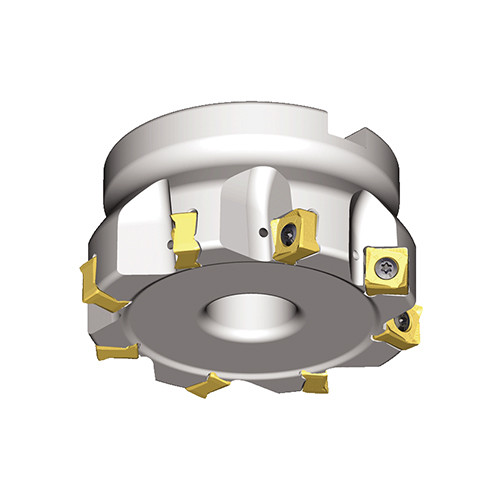

90° Face mills with 8 cutting edges of double-sided Square inserts SQ 12 for general milling
Additional information
Weight
2.1600 kg
Dimensions
barcode
Additional Information

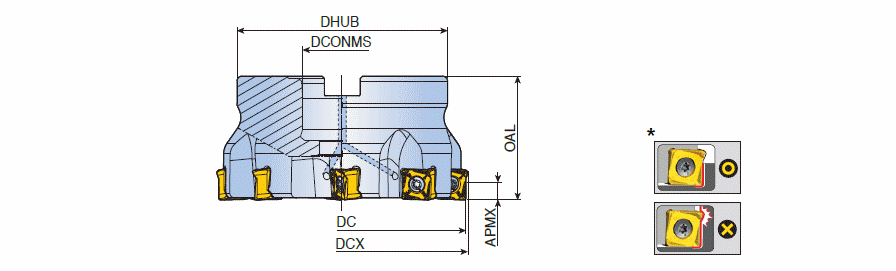

Cutting Diameter (DC/DCX): 101.3 mm
Hub Diameter (DHUB): 66 mm
Cutting Diameter (DC): 100 mm
Master Insert Identification (MIID): SQKU 120608 PNR-MP
Cutting Diameter Maximum (DCX): 101.3 mm
Body Material: Steel
Cutting Item Count (CICT): 14
Application:, Facing, Shouldering, Depth of Cut Maximum (APMX): 8.5 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Unit: M
Overall Length (OAL): 8.5 mm
