Taegutec 8D-TF90-432-16R-07

Product Code: 6322650

$707.47$643.15 Ex. GST

Product Code: 6322650 SKU 6322650 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

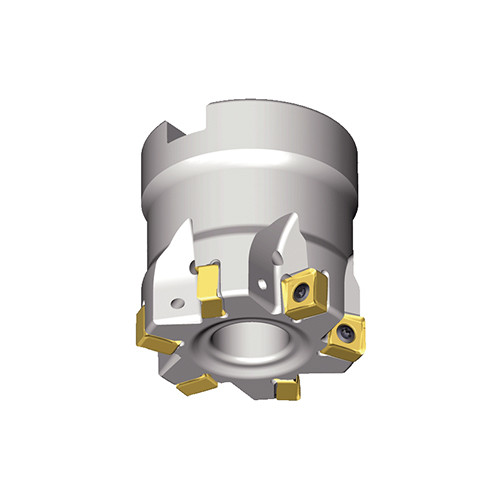

Taegutec 8D-TF90-432-16R-07

Taegutec 8D-TF90-432-16R-07 - Image 2

Taegutec 8D-TF90-432-16R-07 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with 8 cutting edges of double-sided Square inserts SQ 07 for general milling

Additional information

Weight	0.6700 kg
Dimensions
barcode

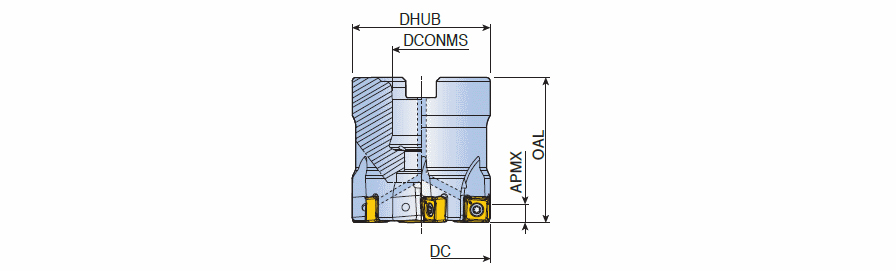

Additional Information	Cutting Diameter (DC/DCX): 32 mm Hub Diameter (DHUB): 30 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): SQKU 070308 PNR-M Cutting Item Count (CICT): 4 Body Material: Steel Depth of Cut Maximum (APMX): 5 mm Application:, Facing, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 16 mm Measurement Type: Metric Overall Length (OAL): 5 mm Unit: M

Brand

Taegutec
