Screw type boring bars for positive 80° Rhombic inserts of 11° clearance angle with coolant and 95° approach angle
Additional information
Weight
0.2650 kg
barcode
Additional Information

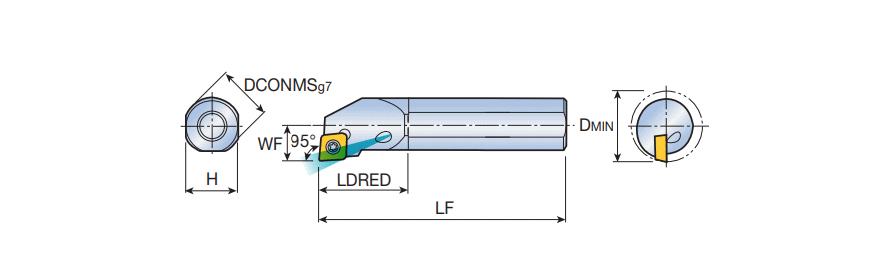

Connection Diameter Machine Side (DCONMS): 16 mm
Application:, Int 95° App 80° Diamond, Functional Length (LF): 180 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 20 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 20 mm
Unit: M
Cutting Direction (HAND): Right Hand
