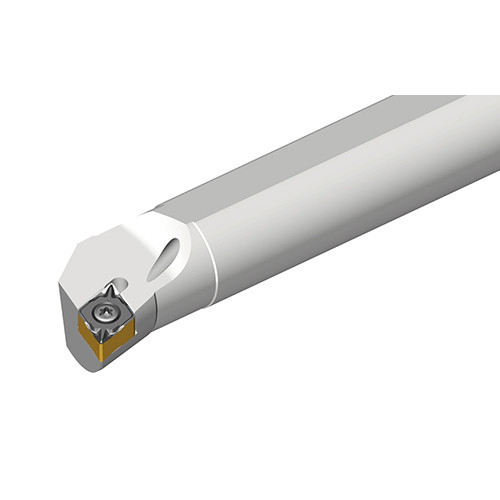

Screw type RHINOXTURN boring bars with internal coolant, 100° approach angle & 70° corner angle XNMG inserts
Additional information
Weight
0.2450 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 16 mm
Cutting Direction (HAND): Right Hand
Functional Length (LF): 180 mm
Application:, Int 100° App 70° Diamond, Reduced Body Diameter Length (LDRED): 24.5 mm
Body Material: Steel
Shank Height (H): 15 mm
Measurement Type: Metric
Functional Width (WF): 11 mm
Unit: M
Minimum Bore Diameter (DMIN): 20 mm
