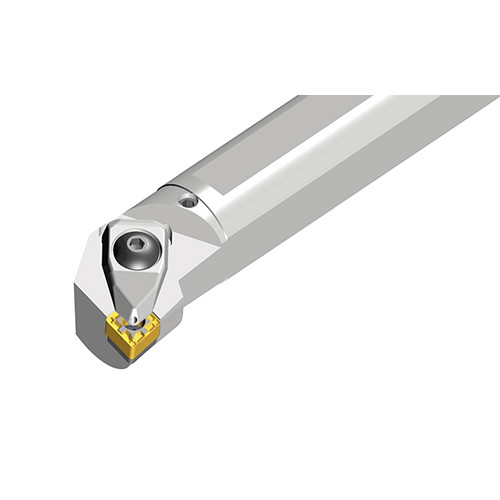

RHINOTURN T-Holder type boring bars for high pressure coolant with 93° approach angle and CN.G 0904 inserts
Additional information
Weight
0.0000 kg
barcode
Additional Information

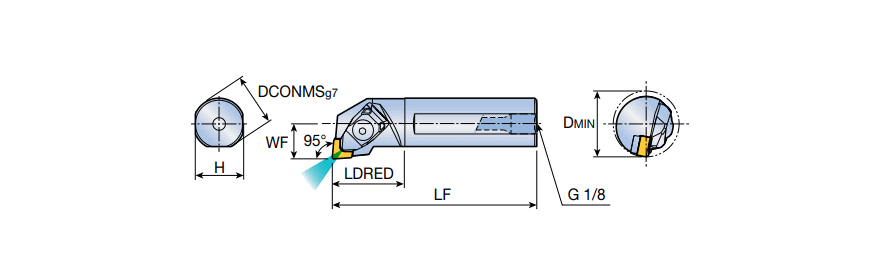

Connection Diameter Machine Side (DCONMS): 25 mm
Cutting Direction (HAND): Left Hand
Functional Length (LF): 200 mm
Application:, Int 95° App 80° Diamond, Reduced Body Diameter Length (LDRED): 33.4 mm
Body Material: Steel
Shank Height (H): 23 mm
Measurement Type: Metric
Functional Width (WF): 17 mm
Unit: M
Minimum Bore Diameter (DMIN): 32 mm
