Taegutec A25R TXQNL 1105

Product Code: 6189208

$546.91$497.19 Ex. GST

Product Code: 6189208 SKU 6189208 Categories BORING BARS, Carbide, CUTTING TOOLS (HSS & Carbide)

Taegutec A25R TXQNL 1105

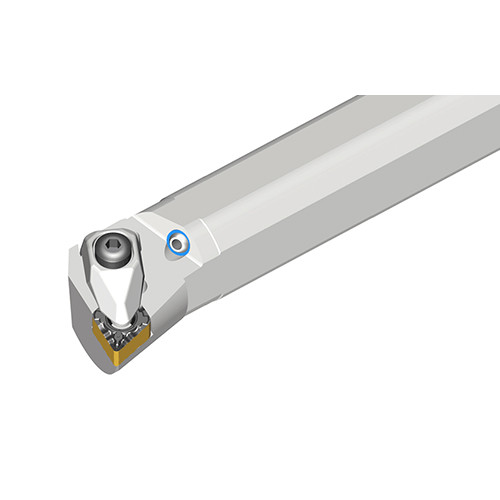

Taegutec A25R TXQNL 1105 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

T-holder RHINOXTURN boring bars with internal coolant, 100° approach angle & 70° corner angle XNMG inserts

Additional information

Weight	0.7150 kg
barcode

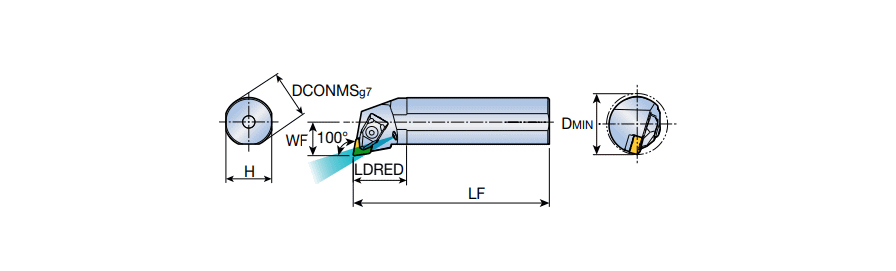

Additional Information	Connection Diameter Machine Side (DCONMS): 25 mm Cutting Direction (HAND): Left Hand Functional Length (LF): 200 mm Application:, Int 100° App 70° Diamond, Reduced Body Diameter Length (LDRED): 33.4 mm Body Material: Steel Shank Height (H): 23 mm Measurement Type: Metric Functional Width (WF): 17 mm Unit: M Minimum Bore Diameter (DMIN): 32 mm

Brand

Taegutec
