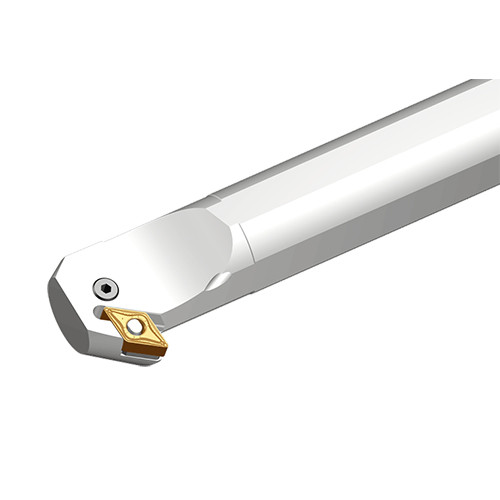

Hook lever RHINOTURN back boring bars for DN.. 1305 inserts with coolant and 93° approach angle
Additional information
Weight
1.5480 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Direction (HAND): Right Hand
Functional Length (LF): 250 mm
Application:, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Reduced Body Diameter Length (LDRED): 35 mm
Body Material: Steel
Functional Width (WF): 10.5 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 45 mm
Unit: M
