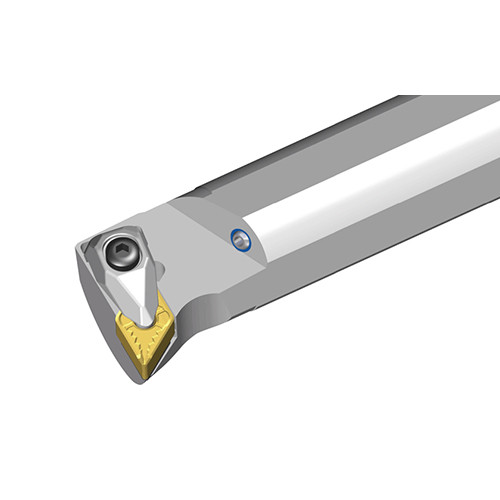

T-holder boring bars for 55° negative Rhombic inserts with coolant and 93° approach angle
Additional information
Weight
1.7800 kg
barcode
Additional Information

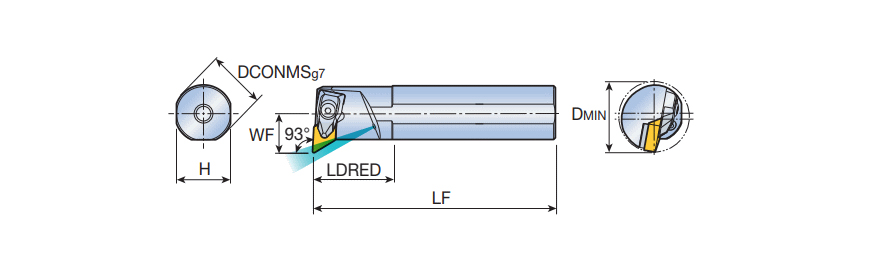

Connection Diameter Machine Side (DCONMS): 32 mm
Application:, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Functional Length (LF): 300 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 45 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 40 mm
Unit: M
Cutting Direction (HAND): Left Hand
