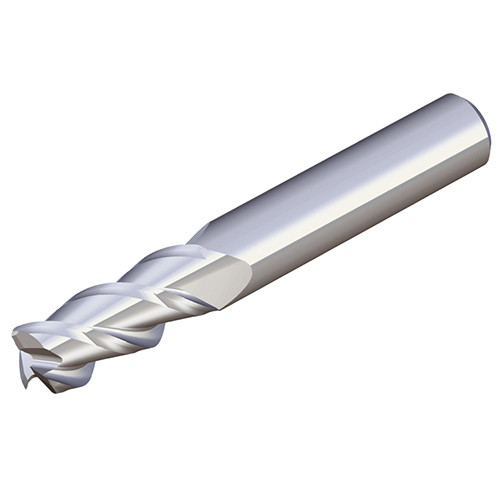

Taegutec AES 3160-R1.0 UF10

Cutting Diameter (DC): 16 mm
End Shape: Corner Radius
Connection Diameter Machine Side (DCONMS): 16 mm
Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Depth of Cut Maximum (APMX): 40 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 90 mm
Corner Radius (RE): 1 mm
Cutting Edge Material: Carbide
Grade: UF10
Coating: Uncoated
Body Material: Carbide
Flute Count (NOF): 3
Measurement Type: Metric
Flute Helix Angle (FHA): 45 Degrees
Unit: M
Shank Type: Round
