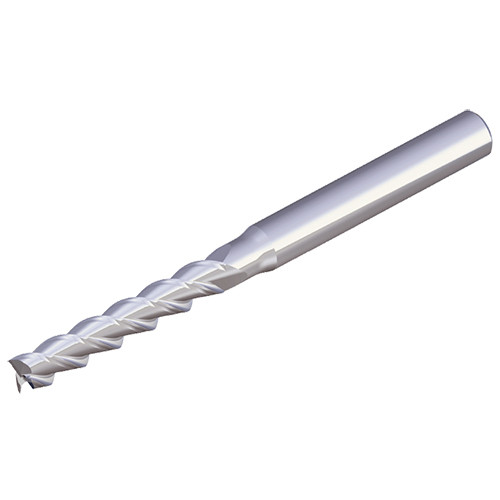

Taegutec AES 3180XL(80X150) UF10

Cutting Diameter (DC): 18 mm
End Shape: Square
Connection Diameter Machine Side (DCONMS): 20 mm
Usable Length (LU): 90 mm
Depth of Cut Maximum (APMX): 80 mm
Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Overall Length (OAL): 150 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Cutting Edge Material: Carbide
Grade: UF10
Coating: Uncoated
Body Material: Carbide
Flute Count (NOF): 3
Measurement Type: Metric
Flute Helix Angle (FHA): 45 Degrees
Unit: M
Shank Type: Round
