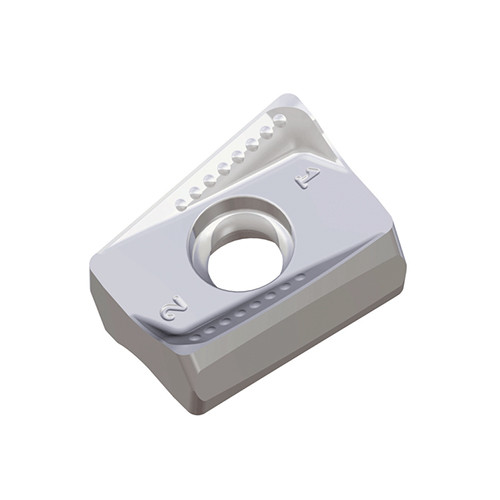

Taegutec ANHX 110608R-AL K10

Description

Double sided ground inserts with 4 helical positive cutting edges and polished tops for aluminum machining of 90° shoulders

Weight	0.0097 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 12 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 9 mm Number of Cutting Edges: 4 Insert Width (W1): 9.2 mm Measurement Type: Metric Insert Thickness (S): 8.6 mm Body Material: Carbide Coating: Uncoated Unit: M
