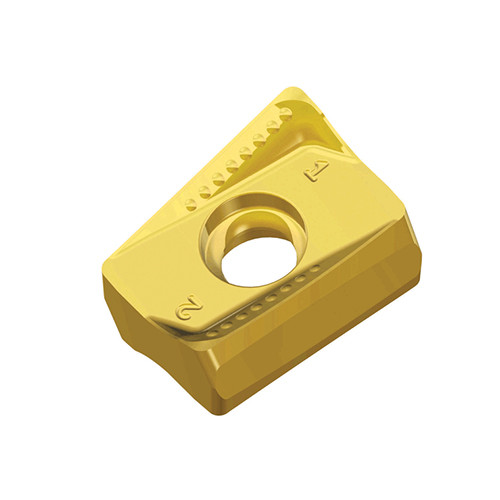

Taegutec ANHX 110608R-M TT6080

Product Code: 5612172

$38.30$34.82 Ex. GST

Product Code: 5612172 SKU 5612172 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double sided inserts with 4 helical positive cutting edges for general machining and 90° shoulders

Weight	0.0098 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 12 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 9 mm Number of Cutting Edges: 4 Insert Width (W1): 9.2 mm Measurement Type: Metric Insert Thickness (S): 8.5 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M
