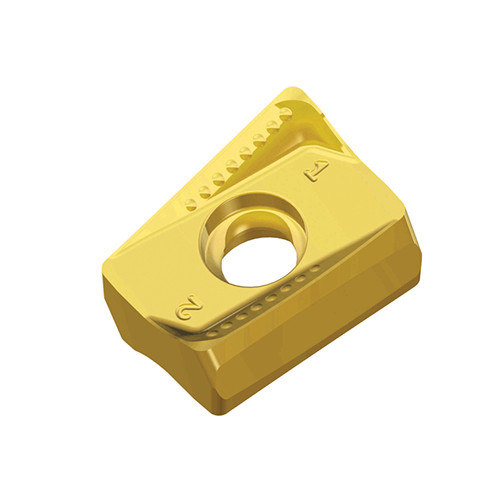

Taegutec ANHX 160724R-M TT6080

Product Code: 5616055

$45.53$41.39 Ex. GST

Product Code: 5616055 SKU 5616055 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double sided inserts with 4 helical positive cutting edges for general machining and 90° shoulders

Weight	0.0162 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 16 mm Cutting Edge Material: Carbide Corner Radius (RE): 2.4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 12 mm Number of Cutting Edges: 4 Insert Width (W1): 11 mm Measurement Type: Metric Insert Thickness (S): 10.4 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M
