Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec ANMX 160708R-M TT9080

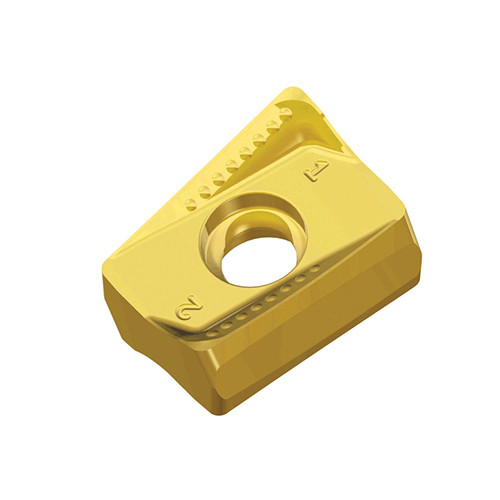

Taegutec ANMX 160708R-M TT9080

Product Code: 5614087

$35.71$32.46 Ex. GST

Product Code: 5614087 SKU 5614087 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec ANMX 160708R-M TT9080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double sided inserts with 4 helical positive cutting edges for general machining and 90° shoulders

Additional information

Weight	0.0156 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 12 mm Number of Cutting Edges: 4 Insert Thickness (S): 10.6 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M

Brand

Taegutec
