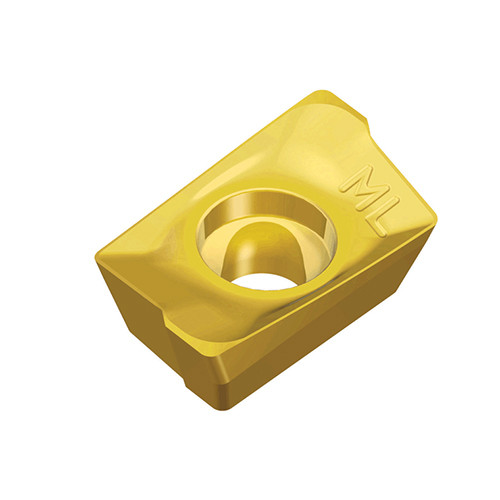

Taegutec APCT 09T3 PER-ML TT8020

Description

Positive ground AP 09 inserts with sharp helical cutting edges for machining of exotic materials & 90° shoulders

Weight	0.0030 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth Cutting Edge Length (L): 9.91 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 7.5 mm Number of Cutting Edges: 2 Insert Width (W1): 6.2 mm Measurement Type: Metric Insert Thickness (S): 3.8 mm Body Material: Carbide Coating: TiCN Unit: M
